Available Bar & Accessories

ON Bottled Water Dispenser System

Pressurised water from a standard bottle, wherever there's no water line.

Prices, stock and checkout are on onthisdayco.com. Sold and serviced by ON THIS DAY, Thailand.

Overview

The ON Bottled Water Dispenser System pumps water from a standard 19 L drinking-water bottle and supplies it under pressure to cup rinsers, taps, espresso machines, ice makers and other equipment that takes a water line.

Connect the bottle and switch on. The pump starts when water is drawn and stops when it isn’t, which makes it a fit for events, booths, pop-ups and temporary coffee bars.

Key features

  • Draws water straight from a bottle, so no water line is needed
  • Suited to cup rinsers and taps at booths, events, pop-ups and mobile coffee bars
  • Starts automatically when water is drawn and stops when it isn't
  • Adjusts to the rate of use for a continuous supply
  • Thermal protection shuts the pump off if it overheats
  • Check valve on the suction wand reduces spills when changing bottles
  • Stops automatically when the bottle runs empty
  • Tubing and fittings included

Specifications

Bottle size
Standard 19 L water bottle (other suitable containers also work)
Tubing
OD 1/4 in (6.35 mm)
Max flow rate
3.8 L/min
Shut-off pressure
70 PSI
Shut-off head
28 m (92 ft)
Max bottle-to-pump distance
approx. 4.9 m (16 ft)

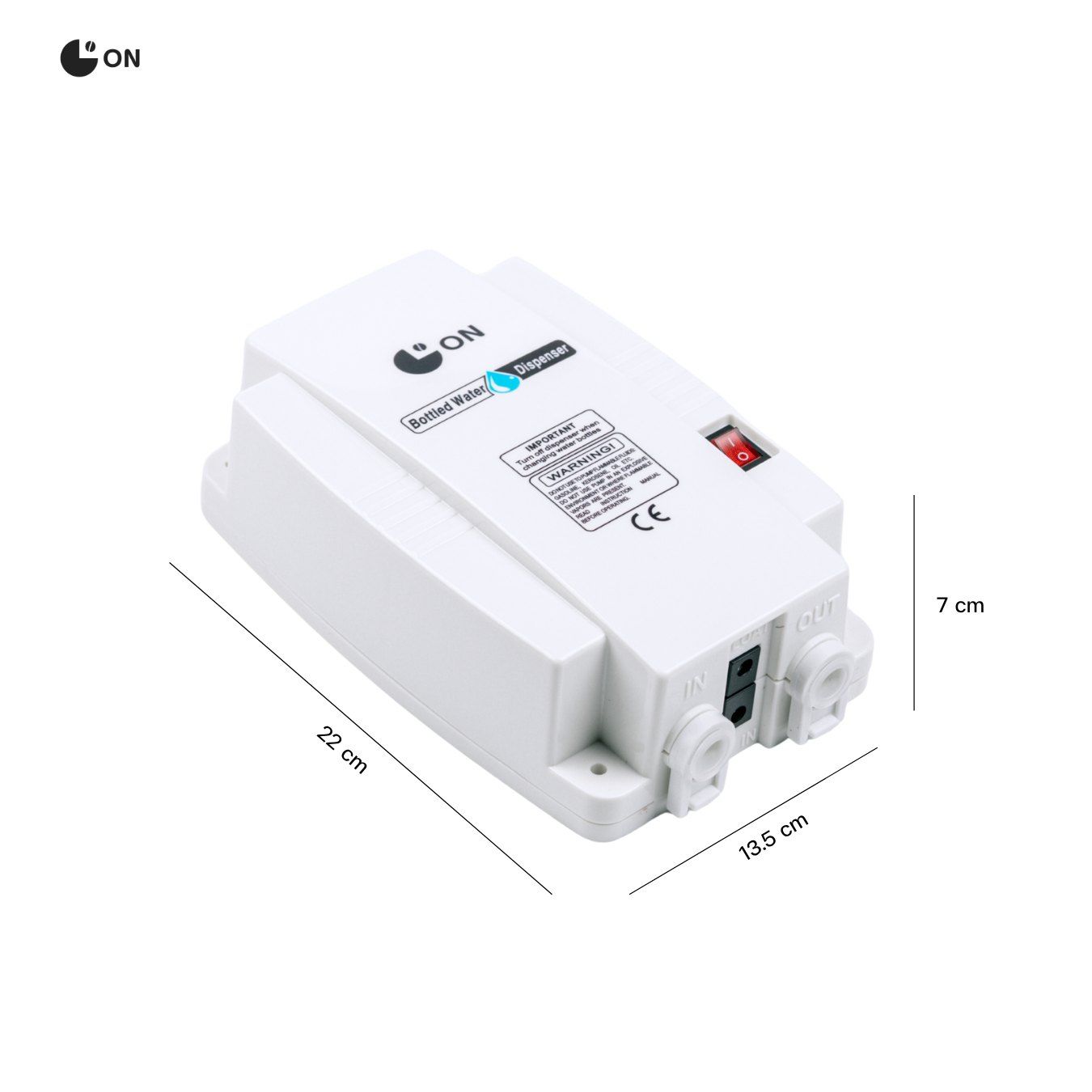

Dimensions
13.5 × 22 × 7 cm
Weight
1.9 kg

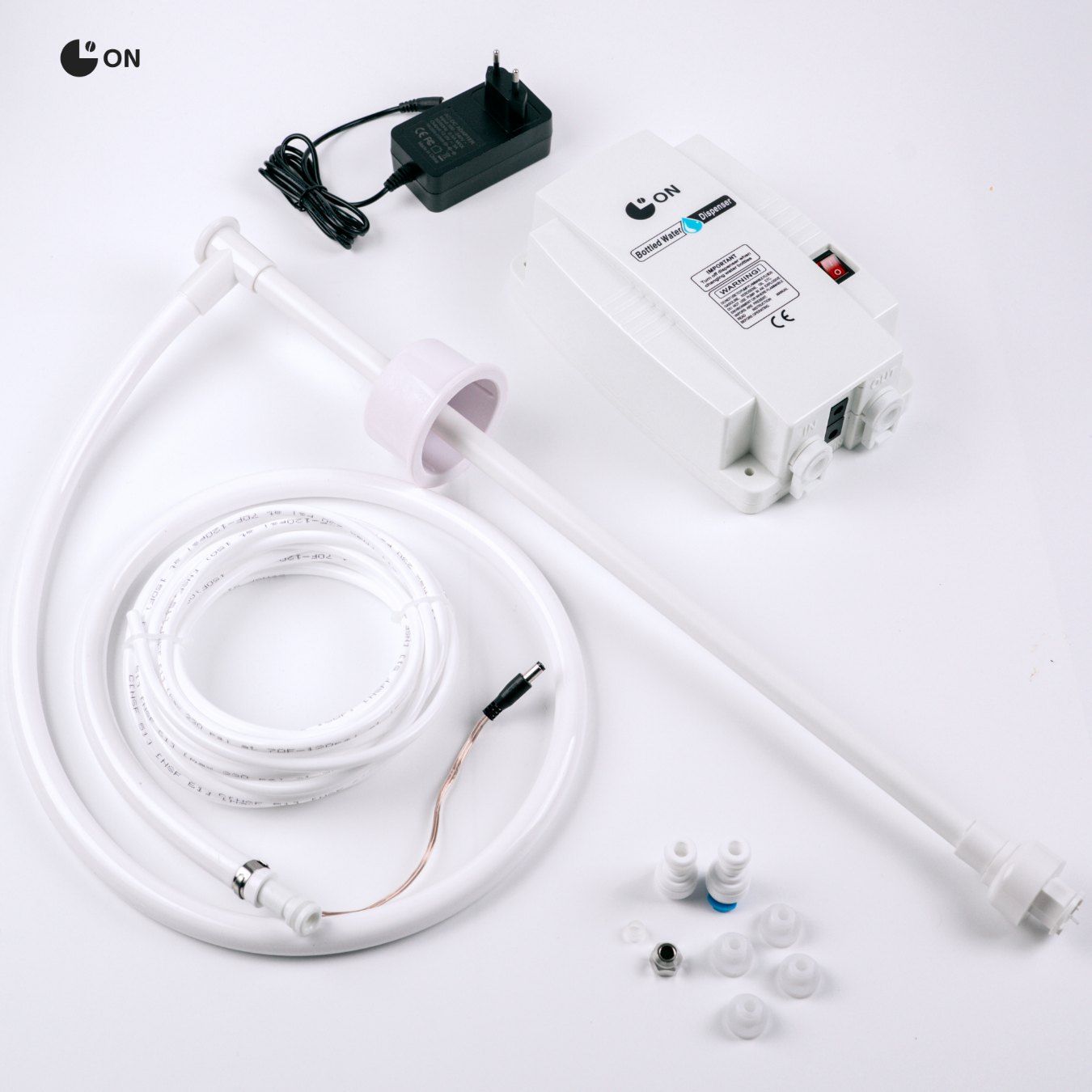

What's in the box

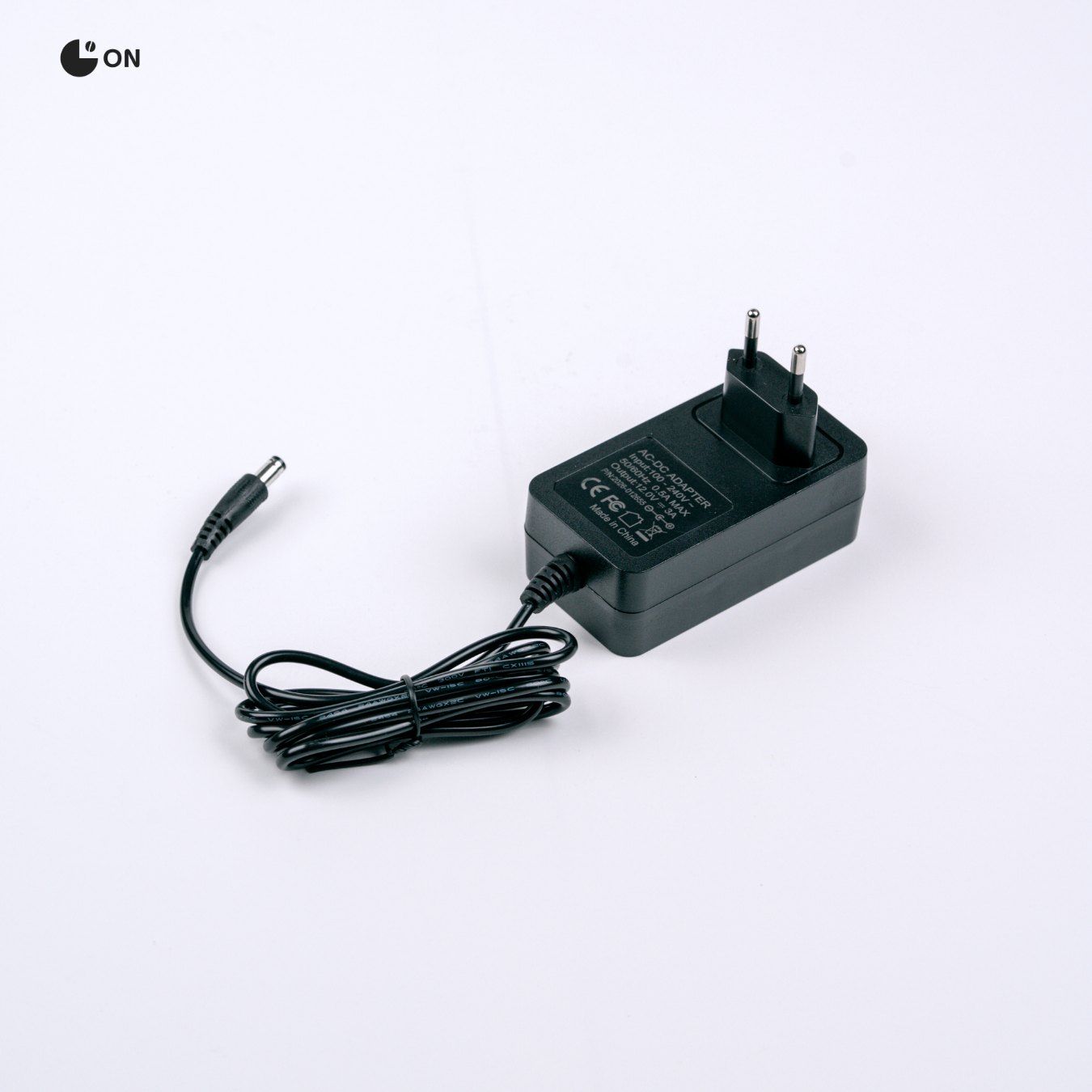

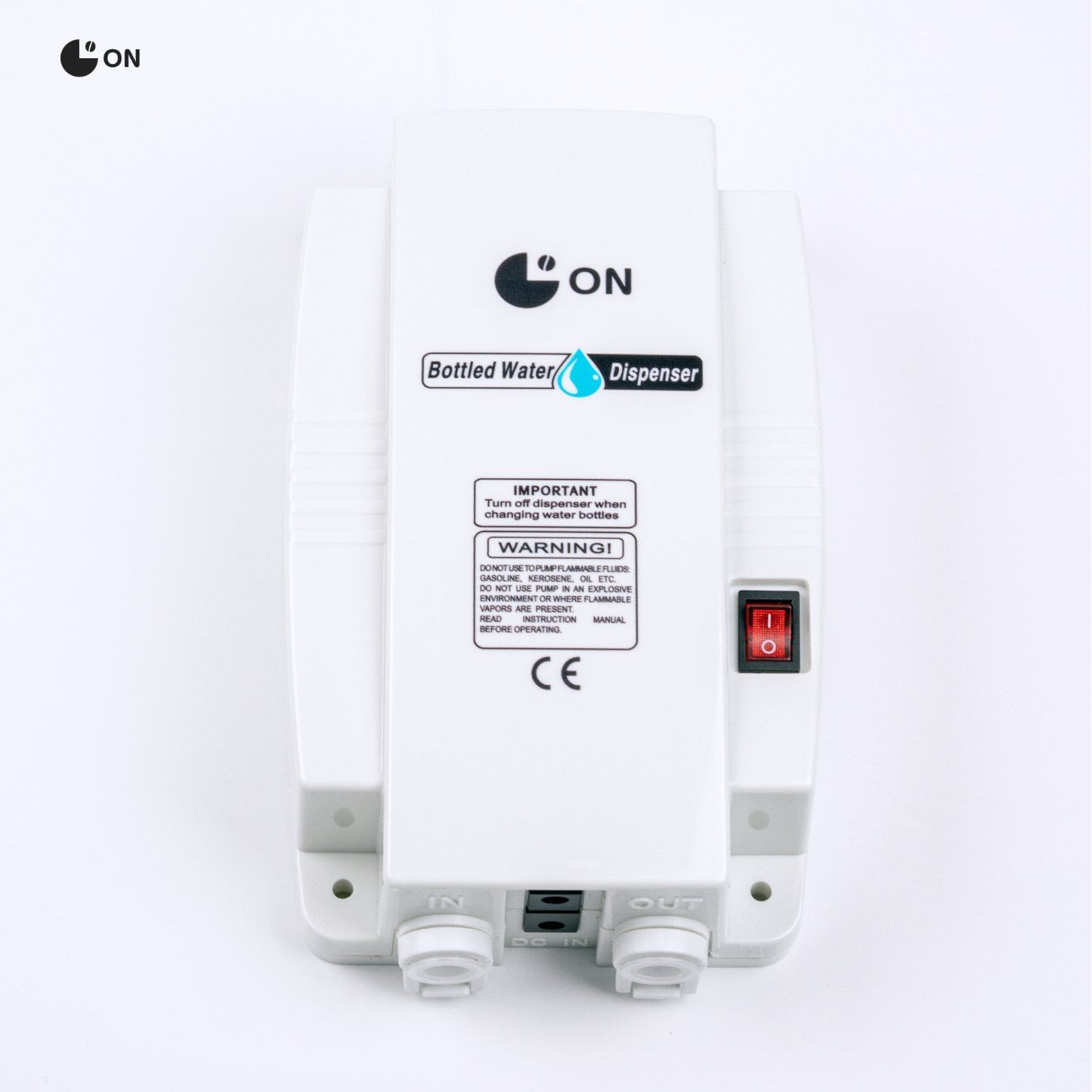

  • Pump unit with on/off switch and approx. 1 m power cord
  • Suction wand with suction tube
  • 6.1 m (20 ft) water tubing

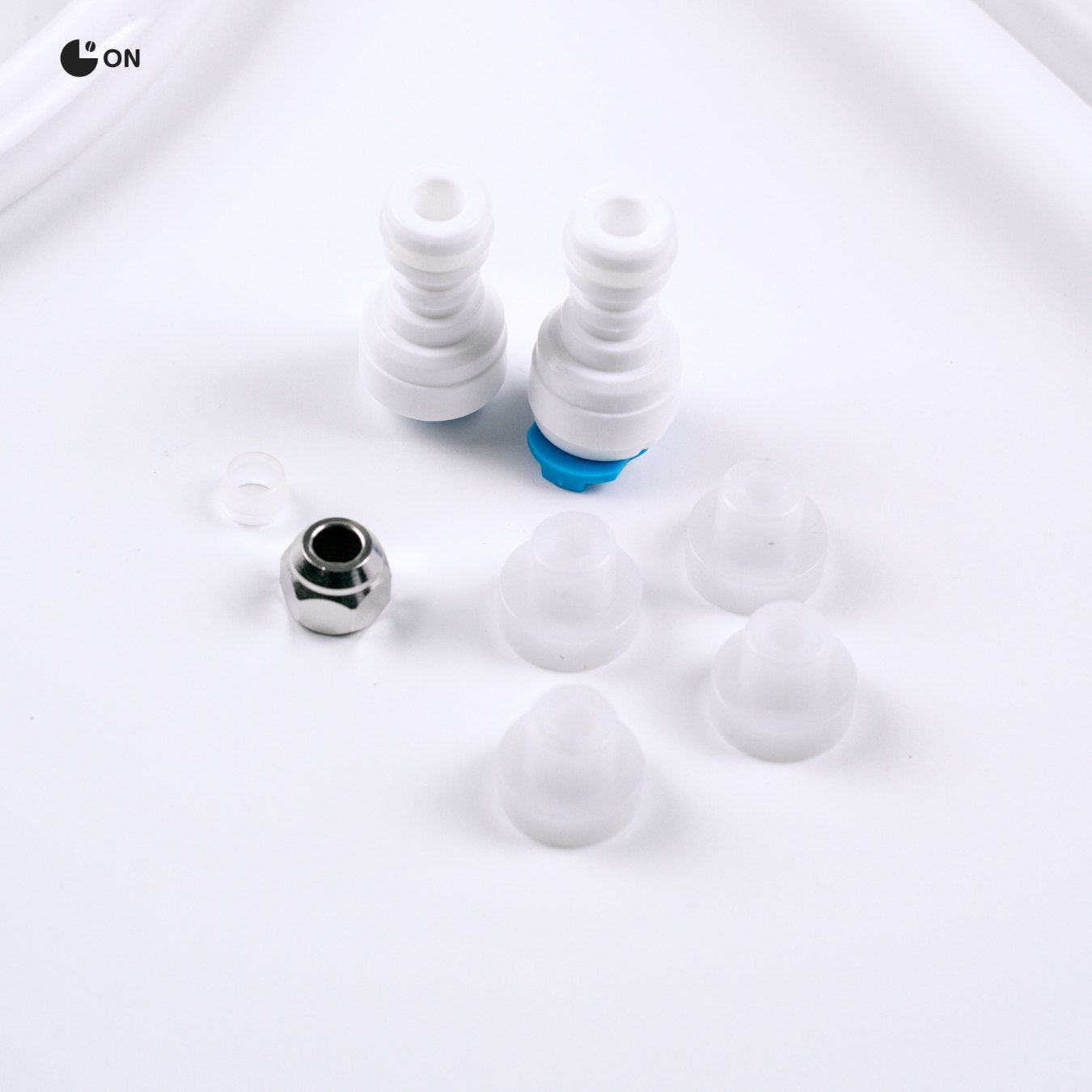

  • Installation fittings
  • Installation and maintenance manual

Care & use

  • Clean and sanitise the system before first use, following the manual.
  • Mount the pump upright in a dry place with an earthed power outlet.
  • Do not kink, twist or block the suction or supply tubing.
  • Do not use copper tubing with this system.
  • Operate within the rated pressure and flow.
  • Outdoors, keep the pump and power connection under cover, away from rain and water.

Warranty & notes

  • 1-year warranty from date of purchase, under ON THIS DAY warranty terms.
  • Check the water-inlet size of the equipment you plan to connect. Different fittings may need an adapter.
  • Check the inlet pressure requirements of your espresso machine before connecting, especially for commercial machines.

Questions about this product? Visit support or message us on LINE
